3D Filament Extrusion Line

CompEx25

The CompEx25 single-screw extruder delivers a reliable and flexible solution for the continuous production of 3D printing filaments, tubing, and small profiles. Each machine is designed for maximum process stability and precision, can be tailored to the specific needs of each operation, and is ready for easy integration with other COMPUPLAST extrusion line equipment.

Learn more

80 m/min

400 °C

Extruder

Screw diameter: 25 mm
Screw length: 30 L/D
Max. temperature: 300 °C (400 °C option)
Max. speed: 200 rpm
Motor power: 5.5 kW
Controlled zones: 4 for barrel and 2 for die
Indication zone: 1x under the hopper
PLC + 12″ HMI
Recipe storage
Remote access
Screw selection based on material recipe
Maximum torque even at maximum speed
Dual-circuit safety system
Coextrusion capability

Cooling tank

Tank length: 4 m
Position: adjustable in 3 axes
Max. water temperature: 85 °C
Sectional pre-cooling trough
Efficient filament air wipe at the end of the tank
PLC + 7″ HMI
Recipe storage
Remote access

Measurement

Measurement axes: 2 (3 optional)
Measurement frequency: up to 32 kHz
Color measurement: optional
Standalone rigid frame
Synchronization with haul-off
Precision stainless steel filament guide

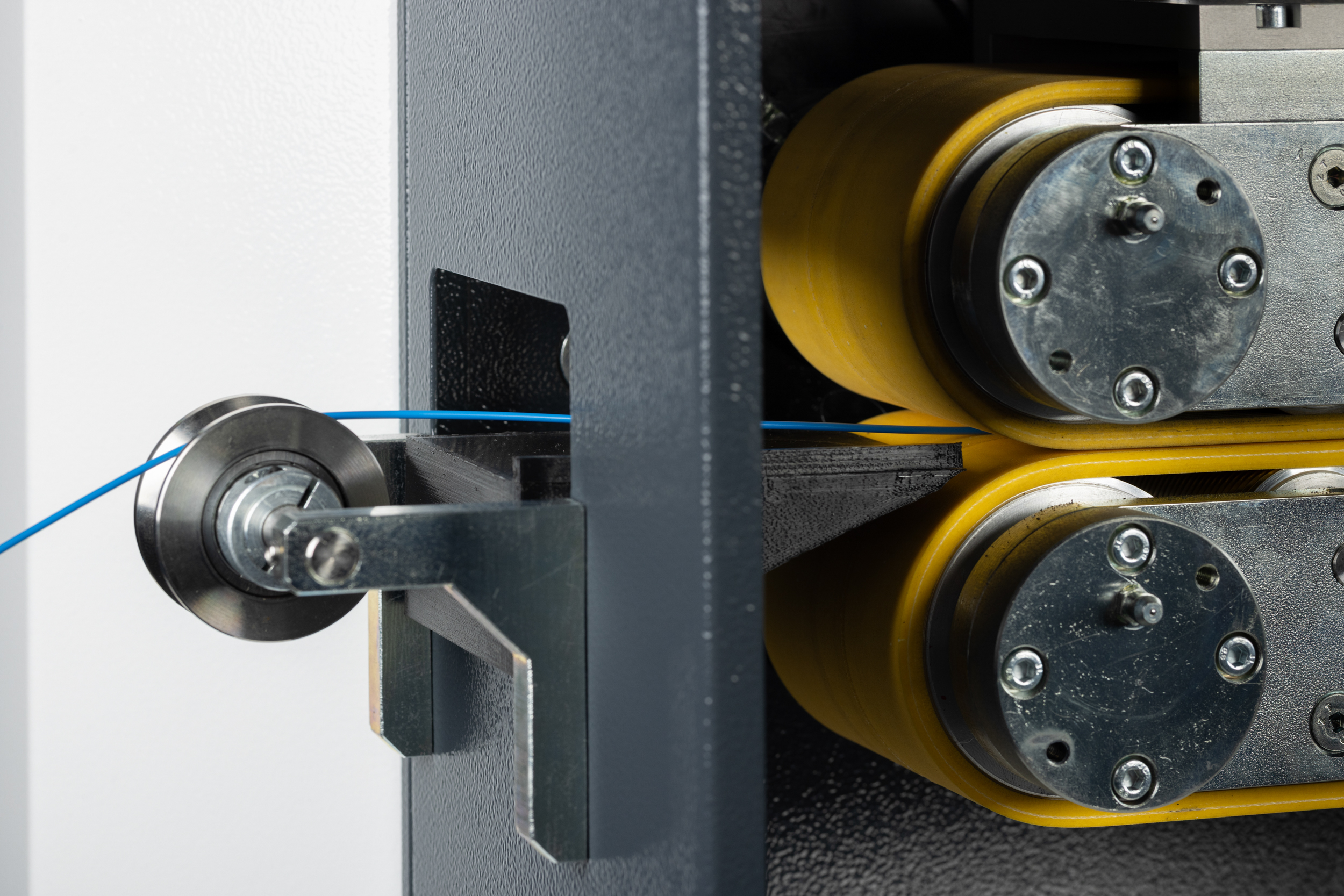

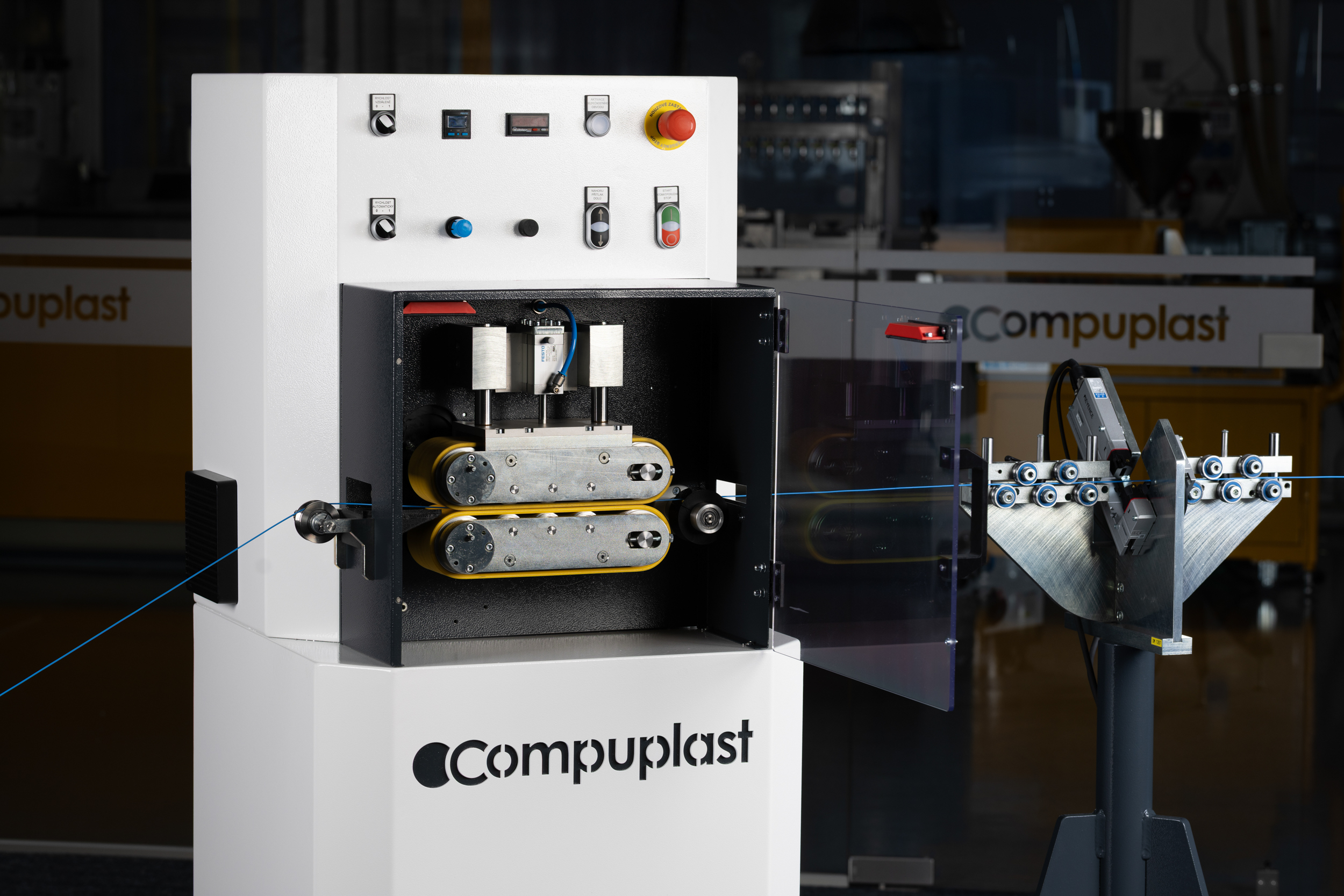

Haul-off

Type: dual-belt
Drive: 2x servo drive
Pulley spacing: 220 mm
Belt width: 80 mm
Max. speed: 100 m/min
Synchronization with gauge
PLC + 7″ HMI
Remote access

Accumulator

Accumulation capacity: 90 m
Accumulator travel: 2 m
Cylinder type: rodless
Pneumatic proportional valve
Accumulation pressure setting
Emergency pull-off unit
PLC + 4″ HMI
Recipe storage
Remote access

Winder

Type: single-station
Winding speed: up to 100 m/min
Autonomous traverse winding
Automatic filament securing
Camera-based corrections: optional
Winding tension adjustment
PLC + 12″ HMI
Recipe storage
Remote access
Fully automatic winding: optional
Custom development of winding systems

Testing at the Manufacturer

Take advantage of the opportunity to visit us in person, where you can inspect the selected technology in detail, test it professionally, and discuss its parameters with our technical specialists. This gives you confidence that the solution fully matches your needs before you place your order.

Contact

Additional Services

material drying
automatic conveying
gravimetric dosing
melt gear pumps
melt filters
coextrusion dies
automated spool handling
cooling and temperature control units
spool labeling
vacuum packing of wound spools
